IMPLANT NEEDLES & FIDUCIAL MARKERS

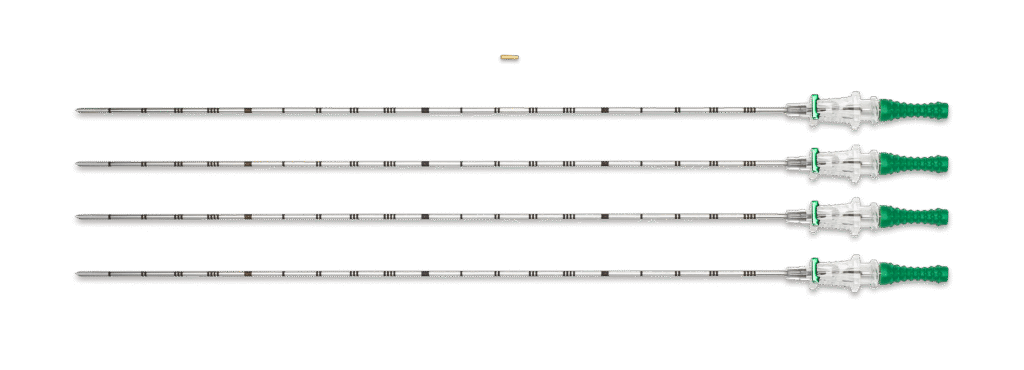

Pre-Waxed Gold Fiducial Marker Needles for Radiation Therapy

Sterile, Preloaded or Unloaded | 17G Needle with Bone Wax Stopper

Our pre-waxed gold fiduciary marker needles are engineered for precision in conventional radiation therapy and image-guided treatment planning. Each needle comes preloaded with one (1) solid gold fiducial marker (99.9% pure gold) and is pre-plugged with bone wax to ensure secure marker retention prior to and during insertion.

These 17-gauge stainless steel implant needles are manufactured with medical-grade 304 stainless steel and ISO 10993-compliant biocompatible resins. When applicable, PGLA (polyglycolic-lactic acid) sleeves and spacers are included to support precise placement.

Key Features:

  • Pre-waxed 17G stainless steel needle for secure implantation

  • 99.9% pure gold fiducial marker for accurate targeting

  • Bone wax stopper made from beeswax, paraffin, and isopropyl palmitate

  • Includes PGLA sleeves and spacers when required

  • Available preloaded or unloaded to meet procedural preferences

  • Sterile and intended for single use in radiation oncology

Materials Used:

  • Marker: 99.9% solid gold

  • Needle: 304 medical-grade stainless steel

  • Wax: Beeswax, paraffin, isopropyl palmitate

  • Resins: ISO 10993-compliant

  • Spacers: PGLA (biodegradable polymer)

Intended Use:

Designed for use in conventional external beam radiation therapy, these gold marker needles aid in tumor localization, patient alignment, and treatment planning. Bone wax acts as a mechanical stopper to retain the marker during needle insertion.

Storage & Safety:

  • Store in a cool, dry, dark environment

  • Avoid prolonged exposure to light

  • Supplied sterile unless the package is opened or damaged

  • Single-use only

Federal law restricts this device to sale by or on the order of a licensed physician.

.
